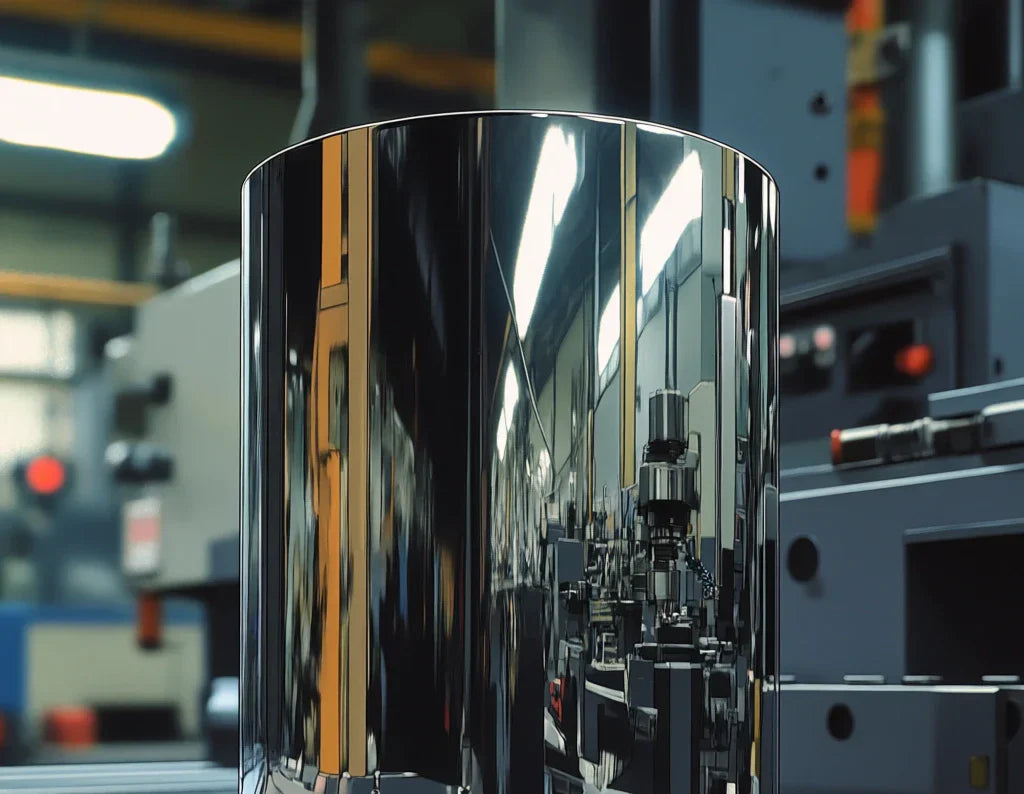

Mirror Finish Ra 0.02
Share
Machining
Mirror Finish Ra 0.02:
The Most Difficult Surface Finish to Achieve
At the other end of the surface roughness scale from Ra 50 sits Ra 0.02 — the mirror finish. A surface so smooth that it reflects light like polished glass, so flat at the microscopic level that optical instruments can measure it, so precise that a fingerprint is a contaminant that matters.
Ra 0.02 is not a standard production finish. It's the limit of what conventional machining processes can achieve, reached through multiple progressive operations, specialized abrasives, and controlled environments. Understanding what it takes to get there — and what applications actually require it — is knowledge that belongs to a small category of precision engineers and machinists.
## 01. WHAT Ra 0.02 ACTUALLY MEANS
Ra 0.02 µm means the average absolute deviation of the surface profile from the mean line is 0.02 micrometers — 20 nanometers. For context, a human hair is approximately 70,000 nanometers in diameter. A Ra 0.02 surface finish has peak-to-valley variation that is 3,500 times smaller than a human hair.
At this scale, the surface is no longer rough in any conventional sense. The remaining "roughness" is at the level of surface crystal structure, residual stress patterns, and machining-induced material deformation. Achieving Ra 0.02 requires not just the right abrasive process — it requires controlling temperature, vibration, contamination, and the metallurgical state of the workpiece itself.
## 02. HOW YOU GET THERE — THE PROCESS SEQUENCE
No single operation produces a mirror finish from a raw casting or machined blank. Ra 0.02 is the result of a progressive sequence — each step reducing roughness by a factor of 2 to 5, with each subsequent step removing less material and requiring more precision.
## 03. WHERE MIRROR FINISH IS ACTUALLY REQUIRED
Optical Mirrors & Lenses
Telescope mirrors, laser cavities, and precision optical instruments require surface roughness below the wavelength of visible light (~400–700 nm). Ra 0.02 µm = 20 nm — at the lower boundary of visible light wavelength. Scratches at this scale scatter light and reduce optical performance.
Gauge Blocks & Standards
Gauge blocks (slip gauges) achieve Ra 0.025 µm or better to enable wringing — the phenomenon where two ultra-flat surfaces adhere to each other through molecular attraction alone. The mirror finish is not decorative; it's what makes wringing possible and calibration traceable.
Injection Mold Cavities
High-gloss plastic parts — optical lenses, display bezels, decorative panels — require mold cavity surfaces at Ra 0.02 to 0.05 µm. The plastic part replicates the mold surface with near-perfect fidelity. The mold finish is the part finish; there is no other way to achieve optical clarity in injection-molded optics.
Silicon Wafer Surfaces
Silicon wafers for microelectronics are polished to Ra values below 0.1 nm — 200× smoother than Ra 0.02. Chemical Mechanical Planarization (CMP) achieves this through a combination of abrasive slurry and chemical etching. Ra 0.02 is not the limit — it's an intermediate step on the way to atomic-scale flatness.
Ultra-Precision Spindle Bearings
High-speed spindle bearings in CNC machining centers, coordinate measuring machines, and gyroscopes operate at speeds where even Ra 0.1 µm creates measurable runout. Mirror-finish bearing races at Ra 0.02–0.05 µm reduce friction, heat generation, and vibration at the levels these applications require.
Fuel System Precision Valves
High-pressure fuel and hydraulic valves in aerospace applications require lapped valve seats and spool surfaces at Ra 0.025–0.05 µm to achieve the leak rates specified under operating pressure. At these tolerances, the surface finish is the seal — no additional sealing elements are present.
## 04. THE COMPLETE SURFACE FINISH TRILOGY
Ra 0.02 completes the surface finish picture that started with Ra 50. The three blogs in this series cover the full range — from the raw casting straight out of the mold to the mirror surface that light can't distinguish from glass:
| Finish | Process | Typical Application | Relative Cost |
|---|---|---|---|
| Ra 50 | As-cast, as-forged | Structural housings, coated surfaces | Baseline — no machining |
| Ra 6.3 | Standard machining | General precision components | Low |
| Ra 1.6 | Fine grinding | Sealing surfaces, bearing housings | Medium |
| Ra 0.8 | Fine grinding / honing | Bearing races, sliding contact | Medium-high |
| Ra 0.2 | Superfinishing | Precision hydraulics, camshaft lobes | High |
| Ra 0.02 | Lapping + polishing | Optics, gauges, mold cavities | Very high — specialist process |
## 05. WHAT CAN GO WRONG AT Ra 0.02
At this level of surface quality, the failure modes are different from conventional machining. The geometry is almost certainly correct — the risks are subtler.
Grinding burns. If the grinding operation in step one generates enough heat to alter the surface microstructure — changing hardness, inducing tensile residual stress, or creating a reaustenitized layer — no amount of subsequent polishing will fix it. The damage is sub-surface. It shows up in service as premature fatigue failure or as dimensional instability over time.
Contamination during polishing. A single particle of the previous, coarser abrasive carried into the final polishing step creates scratches that are impossible to remove without restarting the sequence. Clean-room discipline is not optional at Ra 0.02 — it's the process.
Specifying it when it isn't needed. Ra 0.02 on a surface that doesn't require it is one of the most expensive mistakes a designer can make. The machining cost relative to Ra 1.6 can be 20 to 50 times higher. If the function only requires Ra 0.4, specifying Ra 0.02 adds cost with no benefit — and potentially creates a surface that is worse functionally, since the crosshatch oil-retention pattern from honing is deliberately destroyed by the polishing process.
## 06. THE SHINING DAY — WHAT A MIRROR FINISH MEANS TO THE MACHINIST
There is a specific satisfaction in achieving a mirror finish that other machining operations don't produce. The grinding, the honing, the lapping — each step is productive but unremarkable. The moment the final polishing reveals a surface that reflects the shop ceiling back at you with perfect clarity is different. It's the end of a sequence that takes hours, or days, and leaves a part that is genuinely difficult to look at without stopping.
The machinists who can reliably achieve Ra 0.02 are a small group. They know that the mirror finish isn't about what you add — it's about what you progressively remove, one layer at a time, until there's nothing left to remove. The surface that's left is the one that was always there, waiting underneath.
