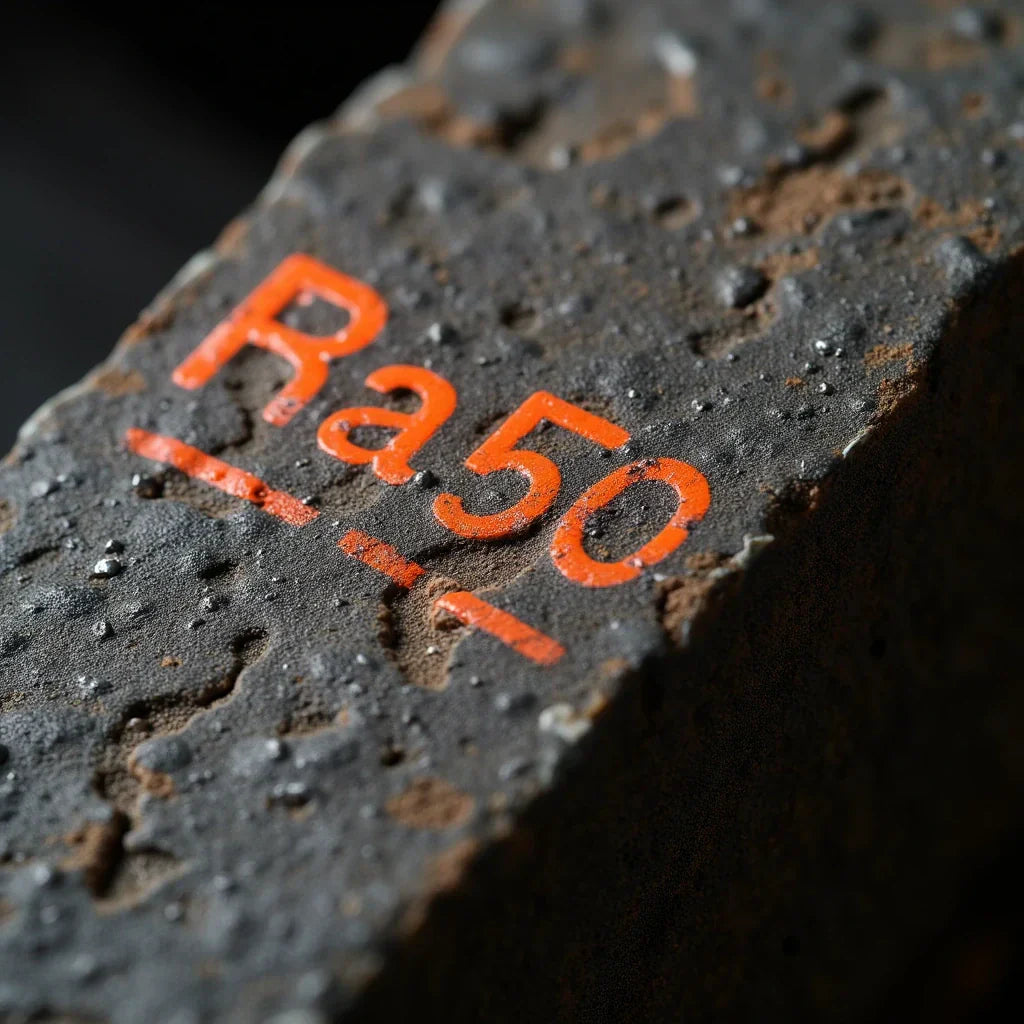

As-Cast Surface Finish - Ra 50
Share
As-Cast Surface Finish:
What Ra 50 Really Means on the Shop Floor
On a surface finish chart, Ra 50 sits at the rough end — the far left, the starting point, the condition you get when you don't machine at all. It's the finish that comes straight from the mold, the forge, or the casting process. Raw. Unworked. Exactly as the metal solidified.
Most engineers specify Ra 50 on drawings without thinking much about it — it means "don't machine this surface." But understanding what Ra 50 actually looks like, how it compares to every other finish, and critically when it's acceptable versus when it's a problem, is knowledge that separates engineers who design for manufacturing from those who don't.
## 01. WHERE Ra 50 COMES FROM
The "as-cast" designation covers any surface produced directly by a casting process without subsequent machining. Sand casting, die casting, investment casting, and permanent mold casting all produce as-cast surfaces — but not at the same roughness. The process determines the finish.
Sand casting is the roughest — Ra values of 12.5 to 50 µm are typical, depending on the sand grain size, mold quality, and metal poured. The irregular surface comes directly from the sand mold texture being imprinted into the solidifying metal. Ra 50 is at the coarse end of sand casting, representing a very rough mold or high-shrinkage alloy.
Die casting produces much smoother as-cast surfaces — typically Ra 1.6 to 3.2 µm — because the metal-on-metal die creates a finer surface texture. An as-cast die casting can sometimes be used directly in applications where a sand casting would require machining.
Investment casting falls between the two — Ra 1.6 to 6.3 µm typically — because the ceramic shell mold has an intermediate texture quality.
## 02. THE ROUGHNESS SCALE — WHERE Ra 50 SITS
Ra 50 is the starting point of the entire scale. Every machining operation moves a surface to the left — finer, smoother, more expensive. Specifying Ra 50 means accepting the maximum roughness the casting process delivers, with no machining cost. That's the right call for many surfaces — and the wrong call for many others.
## 03. WHEN AS-CAST IS ACCEPTABLE
Non-Functional Surfaces
External faces that are purely cosmetic, internal cavity walls with no mating parts, and surfaces that are never contacted, sealed against, or load-bearing. The casting finish is adequate — machining it adds cost with no functional benefit.
Structural Load-Bearing Faces
Large flat surfaces that transfer compressive loads through large contact areas. The roughness creates natural interlocking under load. Machinery bases, press platens, and heavy structural brackets often specify as-cast on primary bearing faces.
Surfaces Receiving Coatings
Paint, powder coat, and thermal spray coatings actually bond better to a rougher surface. Ra 50 provides excellent mechanical adhesion — too smooth and the coating can delaminate. As-cast is often the preferred surface for coated components.
Sealing Surfaces
O-ring grooves, gasket faces, and any surface that must prevent fluid or gas leakage require Ra 1.6 or better. Ra 50 has peaks and valleys 50× the depth of a sealing-grade finish — no elastomeric seal can bridge that gap reliably.
Bearing Seats & Bores
Bearing outer races require consistent, precise bore geometry. Ra 50 would destroy bearing seals on installation and create runout from day one. Bearing seats require Ra 0.8 to 1.6 µm depending on bearing type and speed.
Precision Mating Faces
Any face that must locate a mating part accurately — flange faces, precision register fits, datum surfaces for assembly. The 50 µm peak-to-valley variation of as-cast is orders of magnitude larger than the position tolerances these joints require.
## 04. AS-CAST vs OTHER "AS-PROCESSED" CONDITIONS
| Condition | Typical Ra | Process | Common Application |
|---|---|---|---|
| As-cast (sand) | 12.5 – 50 µm | Sand casting | Engine blocks, pump housings, brackets |
| As-cast (die) | 1.6 – 3.2 µm | Die casting | Automotive components, consumer hardware |
| As-forged | 3.2 – 12.5 µm | Hot/cold forging | Crankshafts, connecting rods, flanges |
| As-rolled | 1.6 – 6.3 µm | Hot/cold rolling | Structural steel, plate, bar stock |
| As-extruded | 0.8 – 3.2 µm | Extrusion | Aluminium profiles, tubes, sections |
| Flame cut | 12.5 – 50 µm | Oxy-fuel / plasma cut | Structural plate, rough profiles |
## 05. THE SURVIVOR BADGE — WHAT Ra 50 MEANS TO THE MACHINIST
There is a specific kind of engineer who has worked in a foundry or a casting facility — who has seen parts come out of the sand, handled the rough castings, and then watched the machining operations transform them surface by surface into precision components. They know that Ra 50 is not a failure. It's the beginning.
The as-cast surface is where the metal starts its life as a functional part. Every subsequent operation — every turning pass, every grinding cycle, every honing stroke — adds cost and removes material to achieve a specific functional purpose. Specifying as-cast where it's appropriate isn't cutting corners. It's understanding that machining a surface that doesn't need machining wastes money on a part that works just as well without it.
The engineer who knows when Ra 50 is right — and when it isn't — designs better parts, at lower cost, with the same function. That's the As-Cast Survivor.
// grabnade.com · apparel
As-Cast Survivor. Ra 50.
For the engineer who knows whereevery surface finish on the scale comes from —
and which ones are worth paying for.
## 06. THE TAKEAWAY FOR YOUR DRAWINGS
Ra 50 is not a lazy specification. Used correctly, it's an engineering decision — a deliberate choice to accept the as-cast condition because that surface doesn't require anything more to do its job. Used incorrectly, it's a drawing error that sends parts back from the assembly line or the field.
The rule is the same as for every surface finish decision: specify the finish the function requires — no finer, no coarser. For surfaces that seal, slide, locate, or bear precision loads, Ra 50 is the starting point for machining, not the target. For surfaces that carry load in compression, receive coatings, or simply close off a cavity, it may be exactly right.
Know where Ra 50 sits on the scale. Know what processes produce it. Know when to leave it alone. That's the whole lesson.
